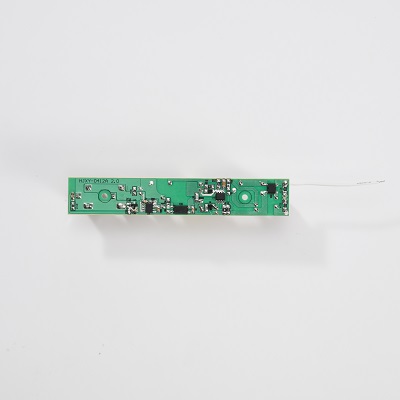

Dual DC Power Supply is a power converter that converts input AC power (AC100~240V) into stable DC output (7.5V2.4A, 9V2A, 12V1.5A) through internal circuits, with an output power of 18W. It is an efficient power supply board widely used in power supply of various electronic devices.
The main function of this Dual DC Power Supply is to convert unstable AC power into stable DC power to supply the power required by electronic devices. It can provide the required stable voltage for devices such as routers, switches, 3C products, etc., to ensure stable operation of the equipment and avoid failure or damage caused by unstable voltage.
Multiple output voltages: Supports output of multiple voltage levels (7.5V2.4A, 9V2A, 12V1.5A) to meet the needs of different electronic devices.
Efficient conversion: Through advanced AC to DC converter technology, the working efficiency reaches ≥80%, ensuring more efficient energy use.
Multiple protection functions: built-in overvoltage protection, short circuit protection, overload protection and temperature protection to ensure the safety of the power board and connected devices.
Wide range of applications: can be applied to a variety of electronic products, such as weak current wiring boxes, routers, switches, etc.
Compact size: the size is only 1202022±0.2mm, which is easy to integrate and install in various devices.
Stable output: through the voltage regulation function, it ensures a stable DC output voltage to meet the power supply requirements of different devices.
High efficiency and energy saving: high conversion efficiency, reduce energy waste, more environmentally friendly and energy-saving.
Multiple safety protection: built-in protection mechanism to prevent overvoltage, overcurrent, short circuit and other problems, and protect electronic equipment.
Strong compatibility: suitable for various electronic products, such as routers, switches, 3C products, etc.
High temperature resistant design: supports operating temperatures from -20℃ to +50℃, adapting to different environmental conditions.
| Type | AC~DC power board |
| Custom processing | Yes |
| Input voltage: | AC100~240V |
| Input frequency | 50/60Hz |
| Output voltage and current | 7.5V2.4A, 9V2A, 12V1.5A |
| Output power | 18W |
| Work efficiency | ≥80% |
| Working temperature | -20℃~+50℃ |
| Storage temperature | -20℃~+80℃ |
| Humidity | 10%~90% RH |
| Multiple protection functions | overvoltage protection, short circuit protection, overload protection, temperature protection |
| Size | 120*20*22 ±0.2mm |
| Application | weak current wiring box, router, switch, 3C products, etc. |
Weak current wiring box: provides a stable power supply for home or office.
Routers and switches: ensure stable operation of network equipment and provide sufficient power.
3C products: such as TV, audio, monitoring equipment, etc., provide the required power through Dual DC Power Supply.
LED lamps: Some LED lighting products require stable DC power supply, which can be achieved through this power board.
Other electronic devices: Suitable for all kinds of electronic devices that require stable DC power.
Please make sure that the input voltage of your device matches the output voltage. For example, 7.5V, 9V, 12V output voltage, select the voltage output that suits your device. If it still does not work, check whether the power board is connected properly and make sure that the voltage of the power board is within the range supported by the device.
This power board is widely used in most devices that require DC power supply, such as routers, switches, 3C products, LED lights, etc. However, please confirm that the working voltage of the device matches the output voltage of the power board before use.
Dual DC Power Supply usually adopts switching power supply technology, which is more efficient and small in size, and is suitable for devices that require high efficiency. Linear power supply adjusts the output linearly, which is relatively inefficient, but its output voltage is more stable, which is suitable for applications with high power quality requirements.
Please make sure that the power board is in a well-ventilated environment and avoid overloading. The Dual DC Power Supply board has built-in temperature protection, but continuous high temperature may affect its life or performance. Check if there are any external factors causing overheating, and take necessary heat dissipation measures.
When selecting a power board, first confirm the required output voltage and current requirements, and match them with the output specifications of the power board. Secondly, consider the power requirements and safety protection requirements of the equipment, such as overvoltage, short circuit and overload protection.
