AC DC Converter Board

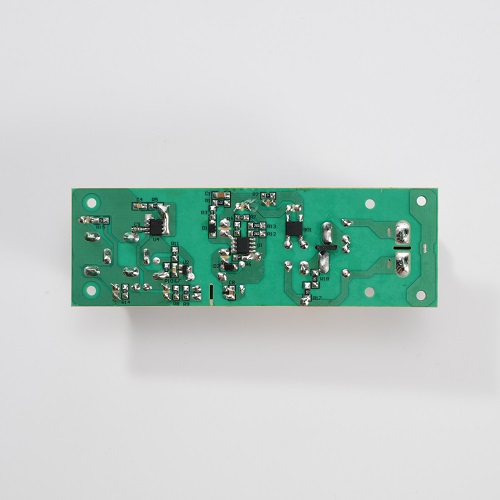

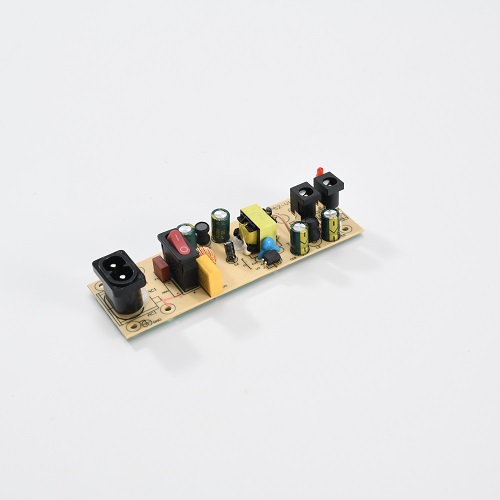

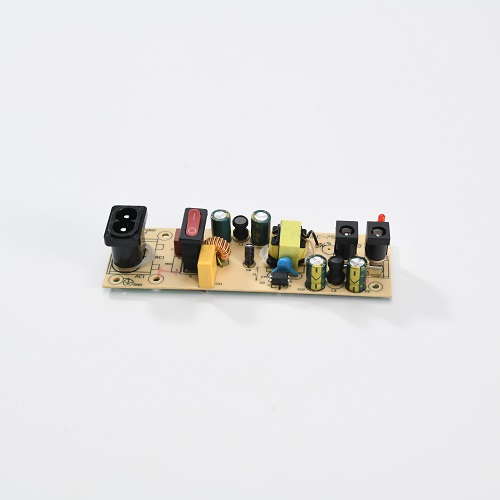

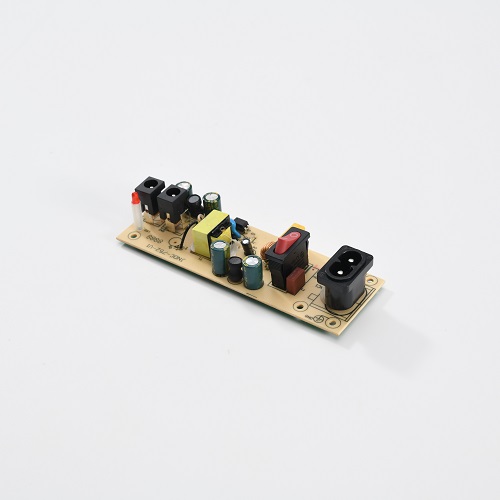

AC DC Converter Board is a power converter that converts alternating current (AC) to direct current (DC). It is commonly used in various electronic devices to provide stable DC voltage for the device. The model of this power supply board is HJXY-0415. It is highly customized and suitable for a variety of application environments. It can provide stable and reliable power supply for the device.

Features:

Wide input voltage range: supports AC 100V-240V input voltage, adapting to the grid voltage in different regions of the world.

High working efficiency: The working efficiency reaches more than 80%, which can effectively reduce energy waste and reduce power consumption.

Multiple protection functions: It has multiple safety protection measures such as overvoltage protection, short circuit protection, overload protection and temperature protection, which effectively ensures the stable operation of the equipment under harsh conditions.

Wide operating temperature range: The operating temperature range is -20℃ to +50℃, and it can work stably even in extreme environments.

Compact size: The size is 117*38*22 ±0.2mm, which is suitable for integration into a variety of electronic products without taking up too much space.

High humidity adaptability: The humidity adaptability range is 10% to 90% RH, which can adapt to various environmental conditions.

Function

The main function of this AC to DC power supply board is to convert AC power into stable DC power, providing reliable power support for low-power electronic devices (such as routers, switches, weak current wiring boxes, etc.). Its output voltage and current configurations include 7.5V2A, 9V1.6A and 12V1.25A, which can adapt to devices with different power requirements.

Scope of use:

Weak current wiring box: Provide power support to ensure the operation of equipment.

Routers and switches: Provide stable DC power for network equipment.

3C products (computers, communications, consumer electronics): Used in various consumer electronic devices to ensure the stability of the equipment during operation.

Other electronic products: Such as various devices that require low-power DC power.

Advantages:

Strong compatibility: Supports a wide range of input voltage (AC 100V-240V), suitable for different countries and regions.

High safety: Built-in multiple protection mechanisms to ensure the safety of equipment during use.

High efficiency and energy saving: high conversion rate (≥80%), reducing energy waste and increasing the service life of the power supply.

Small and convenient: compact size design, suitable for various applications with limited space.

Widely applicable: can be used for various weak current products and consumer electronic equipment, with a wide range of uses.

FAQ

Does the input voltage range meet the requirements of the local power grid?

This power strip supports AC100V-240V input voltage and is suitable for power grids in most parts of the world.

Do the output voltage and current meet the needs of my device?

The output voltages are 7.5V2A, 9V1.6A and 12V1.25A respectively. You can choose the appropriate output configuration according to the needs of different devices.

What is the working efficiency of this power strip? Is it energy-saving?

The working efficiency of the power strip is ≥80%, which can effectively reduce energy waste and achieve energy saving.

Can it work stably in high or low temperature environments?

The operating temperature range is -20℃ to +50℃, which can adapt to a variety of extreme environments and can operate stably.

Are the multiple protection functions sufficient to ensure the safety of the equipment?

The power strip has overvoltage protection, short circuit protection, overload protection and temperature protection to ensure the safe operation of the equipment under abnormal conditions.

Is the product size suitable for my device installation?

The size of the power strip is 117*38*22 ±0.2mm, and the compact design is suitable for the installation needs of a variety of devices. It can also be customized according to your needs.

Is there a quality guarantee or after-sales service?

Products usually provide quality assurance and have a complete after-sales service system to ensure support after purchase.

What is the life and durability of this power strip?

This power strip is designed to meet the requirements of long-term use, with a long service life and high durability.

Does it comply with international safety standards?

This power strip complies with international safety standards to ensure compliance with the use requirements and certifications of various countries.
