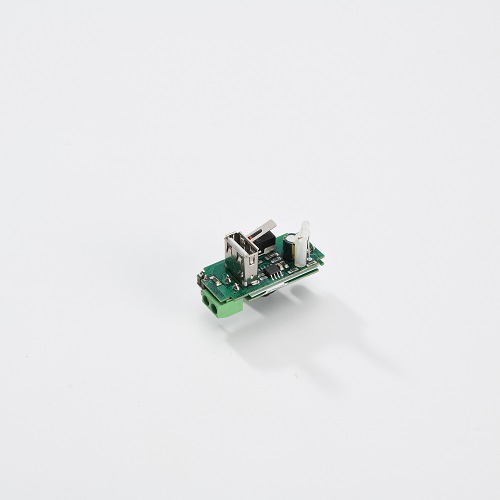

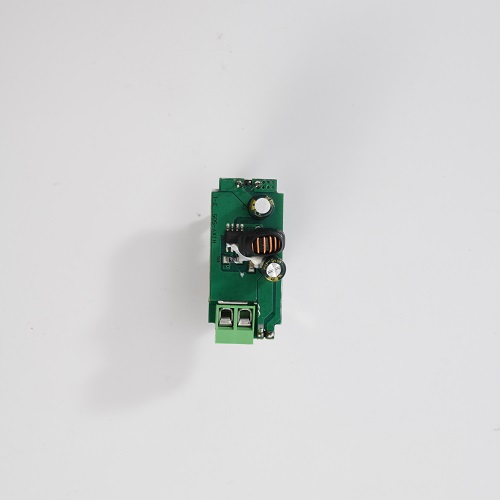

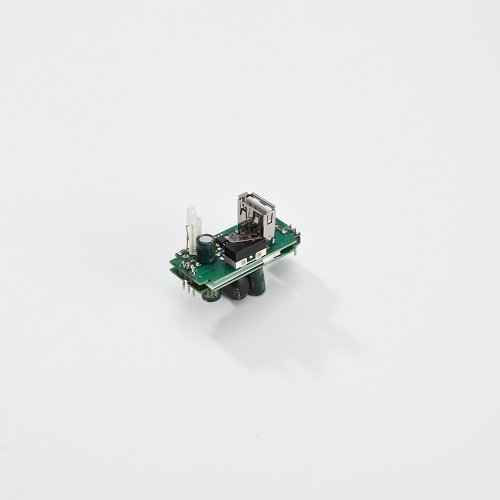

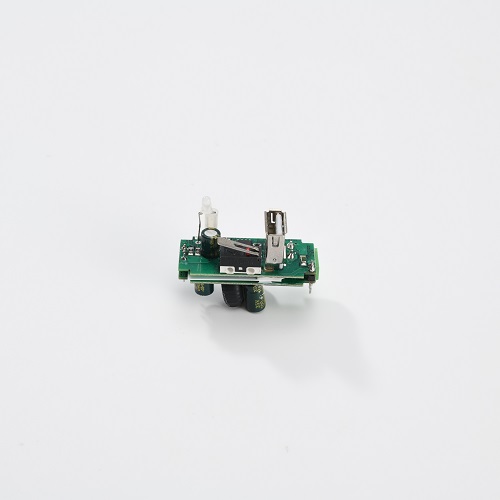

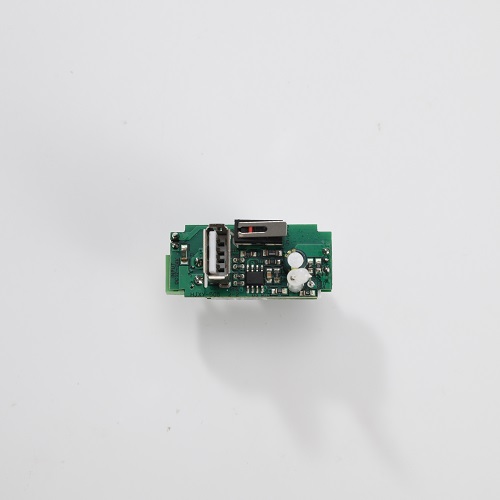

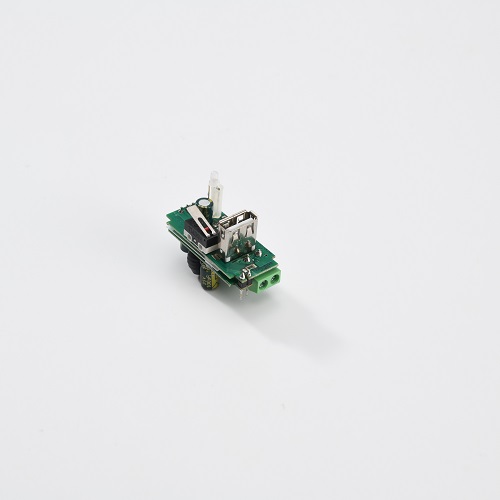

Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board
  • Electric Vehicle Charging Board

Electric Vehicle Charging Board

HJXY-505-5V2.4A

The Electric Vehicle Charging Board supports DC 12V-24V input, provides dual USB ports (5V 2.4A), and a total power of 12W. With high efficiency, multiple protections, constant current design, and charging status indicator, it is widely used in car and home sockets.
  • Product Details

HJXY-505 is a DC~DC car charging board designed to convert the direct current (DC12V~24V) of the car battery into a stable voltage suitable for charging various electronic devices. It has two USB output ports, each supporting an output power of 5V 2.4A (total power of 12W), which can provide fast charging for multiple devices at the same time. The charging board adopts a constant current design, equipped with a charging status indicator and multiple protection functions, and is an ideal charging solution in car and home socket environments.


Electric Vehicle Charging Board          Electric Vehicle Charging Board


Electric Vehicle Charging Board Features:

Wide input voltage range: supports DC 12V~24V input, adapting to different car batteries and voltage systems.

Dual USB output: Two USB output interfaces, each supporting 5V 2.4A, ensure fast charging of devices.

High efficiency: working efficiency ≥80%, high energy efficiency, and reduced energy waste.

Constant current design: Provides stable current output to ensure the safety of the device during charging.

Charging status indicator: Equipped with a two-color LED light to indicate the charging status, which is convenient for users to grasp the charging progress.

Multiple protection functions: built-in overvoltage protection, short circuit protection, overload protection and over-temperature protection to ensure safe and worry-free charging process.

Operating temperature range: adapt to the working environment of -20℃ to +50℃, and can work stably under relatively harsh temperatures.

Small and compact: the size is 43.5*19.8mm, which is convenient for installation in small spaces such as vehicle-mounted environments and sockets.

Function: This charging board is mainly used in vehicles to provide stable power for various electronic devices (such as mobile phones, tablets, navigators, etc.). It can convert the DC power of the vehicle battery into 5V output, which is convenient for charging multiple devices at the same time and solving the problem of insufficient power of vehicle-mounted equipment.


Scope of use:

Vehicle charging: suitable for various vehicles such as cars, electric vehicles, trucks, etc., providing stable charging services.

Home socket: can be used on the 86-box wall socket or furniture socket of the home to charge household appliances or electronic devices.

3C products: suitable for the charging needs of 3C products such as mobile phones, tablets, digital cameras, etc.


Advantages:

High efficiency: high conversion efficiency, energy saving and environmental protection.

Multiple protections: Ensure the safety of the device during charging and avoid battery damage.

Widely applicable: It can be flexibly applied in the car, home and other environments.

Intelligent indication: The two-color light shows the charging status, which is more convenient to use.

Compact and convenient: Small size, easy to install and integrate into different devices.


FAQ


Is the input voltage range suitable for my vehicle?

The charging board supports DC 12V~24V input, which is suitable for most vehicle battery voltages.


Does it support fast charging?

Yes, it provides 5V 2.4A output current, and each USB port can achieve fast charging.


Can the device work normally in a high temperature environment?

The operating temperature range is -20℃ to +50℃, which can adapt to different working environments.


Does the charging board have sufficient protection functions?

Yes, it has multiple protection functions such as overvoltage, short circuit, overload, overtemperature, etc. to ensure safe charging.


Is the product easy to install?

The charging board is small in size (43.5*19.8mm), which is very suitable for installation in a car environment or in a socket.


Is there quality assurance and after-sales service?

Most manufacturers provide quality assurance and after-sales service to ensure the quality and long-term use of the product.


Can it charge multiple devices at the same time?

The charging board provides two USB ports, which can charge multiple devices at the same time.


How durable is the product?

The charging board has a stable design and multiple protection mechanisms to ensure reliability in long-term use.
