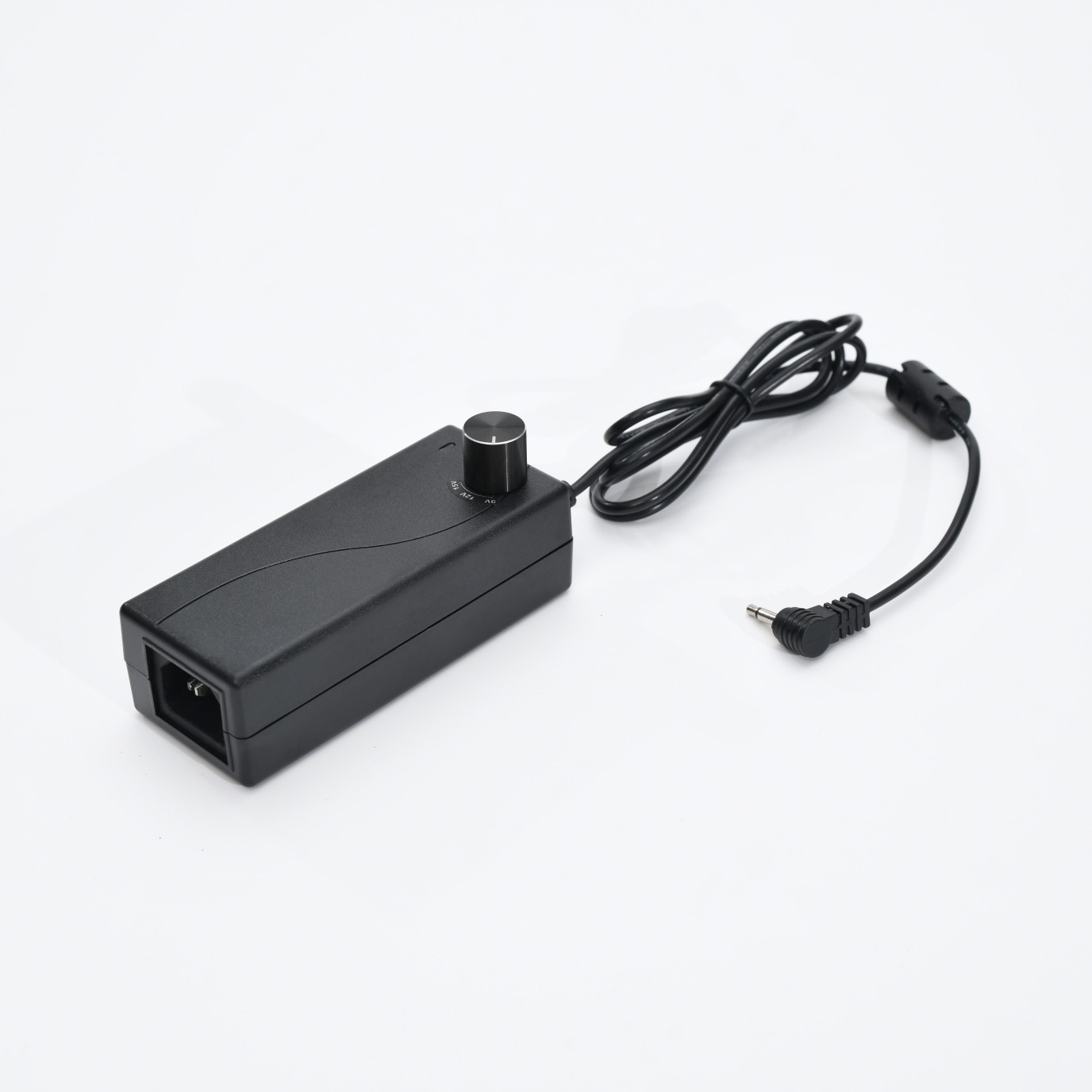

A Multi Voltage AC DC Power Adapter is a power supply designed to provide different DC output voltage options from a single adapter platform. It can be used for electronic devices and equipment that require different voltage levels, making it a flexible solution for manufacturers, distributors, and system integrators.
Unlike a fixed-voltage adapter that provides only one output voltage, a Multi Voltage Power Adapter can be designed with selectable or customized output voltages according to the requirements of different applications.
What Is a Multi Voltage AC dc power adapter?
A Multi Voltage AC DC Power Adapter converts AC input power from an electrical outlet into regulated DC output power for electronic equipment.
Depending on the product design, a multi-voltage adapter may support several output voltage options, such as 5V, 9V, 12V, 15V, 18V, 24V, or other customized voltage levels.
The exact output range depends on the adapter's circuit design, power rating, connector configuration, and application requirements.
Typical features may include:
Multiple DC output voltage options
Regulated output voltage
Wide AC input range
Compact design
Multiple connector options
Over-voltage protection
Over-current protection
Short-circuit protection
Over-temperature protection
Multi Voltage Power Adapter
A Multi Voltage Power Adapter provides greater flexibility than a single-output adapter when different devices or product models require different voltage levels.
For example, one adapter platform may be configured for several output voltages, allowing manufacturers or distributors to reduce the number of separate power adapter models they need to stock.
This can be useful for:
Consumer electronics
Industrial equipment
Networking devices
LED equipment
Security systems
IoT devices
Testing equipment
Automation products
Electronic instruments
The output voltage should always be matched to the requirements of the powered device.
Multi Volt Power Supply
A Multi Volt Power Supply is designed to provide multiple voltage options for electronic systems and equipment.
Depending on the design, the output voltage may be selected through a switch, interchangeable configuration, control system, or factory customization.
A multi-volt power supply can help manufacturers develop a flexible power solution for different product models while maintaining a consistent adapter platform.
Important specifications include:
| Specification | Description |
|---|---|
| AC Input | Input voltage and frequency range |
| DC Output | Available output voltage options |
| Output Current | Maximum current available at each voltage |
| Power Rating | Maximum rated output power |
| Efficiency | Electrical conversion efficiency |
| Connector | DC plug type and polarity |
| Protection | Safety and circuit protection functions |
| Certification | Applicable safety and EMC requirements |
AC DC Multi Voltage Adapter
An AC DC Multi Voltage Adapter is designed to convert AC mains electricity into multiple selectable or customized DC output voltages.
The adapter typically contains an AC input stage, switching power conversion circuit, regulation system, transformer or isolation components where applicable, and DC output stage.
The regulation circuit helps maintain a stable output voltage as input conditions and load conditions change within the specified operating range.
For electronic equipment that requires a stable DC supply, regulated output is particularly important.
AC to DC Multi Voltage Adaptor
An AC to DC Multi Voltage Adaptor provides AC-to-DC power conversion while supporting multiple output voltage requirements.
The term "adaptor" is commonly used in some markets as an alternative spelling of "adapter." Both terms can refer to the same general type of power conversion product.
Depending on the design, an AC to DC multi voltage adaptor can be developed for different input standards, output configurations, connector types, and power ratings.
How Does a Multi Voltage AC DC Power Adapter Work?
The basic operating process of a Multi Voltage AC DC Power Adapter can be divided into several stages.
AC Input
The adapter receives AC power from the electrical supply. A wide-input design may support different mains voltage ranges depending on the target market.
Power Conversion
The internal switching circuit converts the incoming AC power into high-frequency electrical energy and transfers it through the power conversion stage.
Voltage Regulation
The output circuit regulates the converted power to provide the required DC voltage.
Voltage Selection
For multi-voltage models, the required output voltage can be selected or configured according to the product design.
DC Output
The adapter supplies regulated DC power to the connected electronic device through the specified connector.
Advantages of Multi Voltage Power Adapters
Multiple Output Options
A single adapter design can support several voltage requirements, making it more flexible for different applications.
Reduced Product Variations
For manufacturers and distributors, a multi-voltage design can reduce the need to develop or stock separate adapters for every voltage requirement.
Flexible Applications
A Multi Volt Power Supply can be used across different electronic products when the output voltage, current, connector, and power rating are compatible.
Customizable Design
Manufacturers can customize output voltage ranges, power ratings, connectors, cable lengths, housing designs, and other specifications.
Convenient for Global Markets
A suitable wide-input AC design can support different mains voltage requirements in various markets, subject to the applicable electrical and regulatory standards.
Multi Voltage AC DC Power Adapter Applications
Multi Voltage AC DC Power Adapter products can be used in a wide range of electronic and industrial applications.
Consumer Electronics
Multi-voltage adapters can provide power for selected electronic devices that require different DC voltage levels.
Industrial Equipment
Industrial control devices, instruments, and equipment can use customized multi-voltage power adapters when their power requirements are compatible.
Networking Equipment
Routers, communication devices, and networking equipment may require different DC input voltages depending on the product design.
LED Equipment
Selected LED products and controllers can use ac dc adapters with appropriate output voltage and current specifications.
Security Systems
Security cameras, monitoring equipment, access control devices, and related systems may use different DC voltage levels.
IoT Devices
IoT gateways, sensors, communication modules, and other connected devices can use compact multi-voltage power solutions.
Custom Multi Voltage Power Adapter
A Custom Multi Voltage Power Adapter can be developed according to the electrical and mechanical requirements of a specific application.
Customization may include:
AC input range
DC output voltage
Output current
Maximum wattage
Voltage selection method
DC connector
Cable length
Plug type
Housing dimensions
Label and logo
Protection functions
Safety and EMC requirements
For OEM projects, customers should provide the equipment's input voltage, current, power consumption, connector specification, operating environment, and target market requirements.
How to Choose a Multi Voltage Power Adapter?
Selecting the right Multi Voltage Power Adapter requires more than simply matching the output voltage.
Output Voltage
Confirm that the required voltage is included within the adapter's supported output range.
Output Current
The adapter should provide sufficient current for the connected equipment. The required current should not exceed the adapter's rated output capability.
Power Rating
Check the required wattage of the device and make sure the adapter has an appropriate power rating.
Input Voltage
For international applications, check whether the adapter supports the required AC input range.
Connector
Confirm the DC connector size, polarity, and plug type.
Protection
Consider protection functions such as over-voltage, over-current, short-circuit, and over-temperature protection.
Certification
For commercial products, make sure the selected power adapter meets the applicable safety, EMC, and regulatory requirements for the target market.
Multi Voltage Power Adapter Manufacturer
Choosing an experienced Multi Voltage Power Adapter Manufacturer is important for OEM and ODM projects.
A professional manufacturer should be able to support:
Circuit design
Voltage customization
Power rating customization
Connector customization
Housing design
Cable customization
Safety testing
EMC testing
OEM/ODM production
Quality control
For long-term supply, buyers should also consider production capacity, quality consistency, technical support, and delivery capability.
Frequently Asked Questions
What is a Multi Voltage AC DC Power Adapter?
A Multi Voltage AC DC Power Adapter converts AC input power into DC output power and supports multiple selectable or customized output voltage levels.
What is a Multi Voltage Power Adapter used for?
A Multi Voltage Power Adapter can be used for electronic and industrial devices that require different DC voltage levels, provided that the voltage, current, power, connector, and other specifications are compatible.
What is a Multi Volt Power Supply?
A Multi Volt Power Supply is a power supply designed to provide multiple DC output voltage options from one product platform or power supply system.
Can the output voltage be customized?
Yes. A Multi Voltage AC DC Power Adapter can be customized with different output voltage ranges, current ratings, connectors, cables, and power levels according to the application.
What is the difference between an AC DC Multi Voltage Adapter and a fixed-voltage adapter?
A fixed-voltage adapter provides one specified output voltage, while an AC DC Multi Voltage Adapter can provide multiple selectable or customized output voltage options.
Can a multi-voltage adapter be used for different devices?
It can be used for different devices when the selected output voltage, current, power rating, connector, polarity, and other electrical requirements are compatible with each device.
What information is needed to develop a custom multi-voltage adapter?
Manufacturers typically need the required AC input range, DC output voltages, current, power rating, connector type, cable requirements, dimensions, operating environment, and target market certifications.
