What is The Variable Voltage Adapters?
In the realm of electronics, power is the fundamental lifeblood. However, not all devices crave the same electrical diet. Enter the Variable Voltage Adapter (VVA), also known as an adjustable or variable DC power supply. This versatile tool is far more than a simple wall wart; it is a precision instrument designed to deliver a customizable and stable DC voltage to a wide array of electronic circuits and devices. Unlike fixed-voltage adapters, which output a single, unchangeable voltage, a VVA empowers engineers, hobbyists, and technicians by providing control over one of the most critical parameters in electronics.
Defining the Variable Voltage Adapter

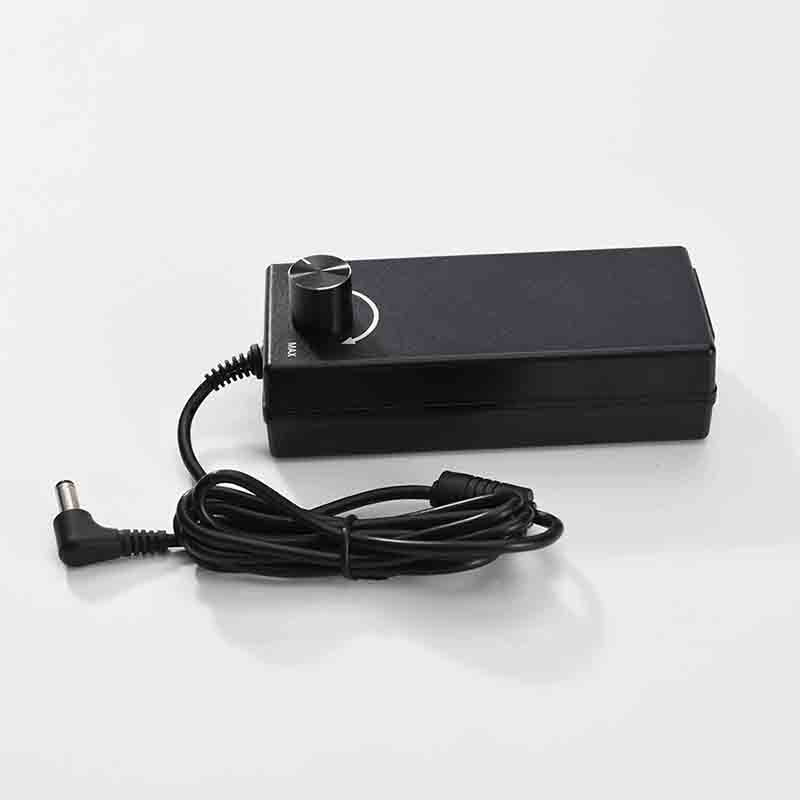

A Variable Voltage Adapter is an external power supply unit that converts Alternating Current (AC) from a wall outlet (typically 100-240V AC) into a lower-level, user-selectable Direct Current (DC) voltage. Its core components include a transformer for stepping down the voltage, a rectifier to convert AC to DC, a filter capacitor to smooth the output, and most importantly, a voltage regulation circuit. This regulation circuit, often based on linear or switching regulator topologies, is what allows the output voltage to be precisely adjusted, usually via a rotary potentiometer or a digital interface.
Key Characteristics and Technical Data
The utility of a VVA is defined by its specifications. Understanding these parameters is crucial for selecting the right adapter for any given application.
Adjustable Output Voltage Range
This is the primary feature. The adapter allows the user to select any voltage within a specified minimum and maximum. Common ranges for benchtop hobbyist models are 0-30V, while more specialized units can offer ranges from 0-60V or even higher. The resolution of adjustment can be as coarse as 0.1V on analog dials or as fine as 1mV (0.001V) on advanced digital models.
Maximum Current Output/Capacity
This specifies the maximum amount of current the adapter can safely supply without overheating or triggering its protection circuits. Common maximum current ratings are 3A, 5A, or 10A. It is critical to note that the maximum power (in watts) is the product of voltage and current (P = V * I). For example, a 30V/5A supply has a maximum power rating of 150W. At lower voltages, the maximum current may still be 5A, but the power drawn will be less.
Regulation and Stability
A high-quality VVA maintains a stable output voltage despite variations in the input AC line voltage or changes in the load current drawn by the device. Line Regulation might be specified as<0.01%>
Ripple and Noise
Even after rectification and filtering, a small AC component, known as ripple, remains superimposed on the DC output. This is measured in millivolts peak-to-peak (mVpp) or root mean square (mVrms). High-performance VVAs feature very low ripple, for example,<1mvrms, which="" is="" essential="" for="" powering="" sensitive="" analog="" and="" rf="" circuits.="">
Protection Features
Modern VVAs incorporate multiple protection mechanisms to safeguard both the adapter and the connected device:
Over-Current Protection (OCP): Automatically limits the output current or shuts down the unit if a preset threshold (e.g., 110% of the max rating) is exceeded.
Over-Voltage Protection (OVP): Shuts down the output if the voltage accidentally exceeds a safe level, preventing damage to sensitive components.
Over-Temperature Protection (OTP): Uses a thermal sensor to disable the unit if internal temperatures become dangerously high.
Short-Circuit Protection (SCP): A critical feature that immediately engages when the output leads are shorted, preventing catastrophic failure.
User Interface and Display
Basic models use an analog dial for voltage adjustment and a mechanical meter for display. Advanced units feature digital LED or LCD displays that show the set voltage and, often, the actual output voltage and current being drawn in real-time, with a typical accuracy of ±0.5% + 1 digit.
Primary Application Scenarios
The flexibility of variable voltage adapters makes them indispensable across numerous fields.
Electronics Development and Prototyping
Engineers and hobbyists use VVAs to power breadboarded circuits during the design and testing phase. They can slowly ramp up the voltage to test circuit behavior under different conditions, identify the minimum operating voltage, and stress-test components safely.
Testing and Troubleshooting
Technicians use VVAs to diagnose faulty electronics. By applying a controlled voltage to a specific section of a circuit (like a motor or an amplifier stage), they can isolate problems without the risk of overvoltage from a fixed adapter. They are also perfect for testing the viability of unknown or unmarked DC motors and LEDs.
Bench Power for Laboratory Equipment
In research and development labs, high-precision, low-noise VVAs serve as a clean power source for sensitive instrumentation, sensor arrays, and data acquisition systems where power quality is paramount.
Charging and Powering Diverse Devices
With the correct polarity and connector, a VVA can be used to charge a variety of batteries (like LiPo or Pb-acid) by carefully controlling the charging voltage. It can also power devices that have lost their original charger, as long as the voltage and current requirements are matched.
Educational Purposes
In academic settings, VVAs are excellent tools for demonstrating fundamental electrical principles such as Ohm's Law, power calculation, and the relationship between voltage, current, and resistance in a hands-on, visual manner.
Proper Maintenance and Care Procedures
To ensure longevity, accuracy, and safe operation, a Variable Voltage Adapter requires conscientious care.
Environmental Conditions
Always operate and store the adapter in a clean, dry, and cool environment. Avoid areas with excessive dust, humidity, or high temperatures. The operating temperature range is typically specified by the manufacturer, e.g., 0°C to 40°C (32°F to 104°F). High ambient temperatures can reduce the adapter's maximum current capacity and accelerate component aging.
Ventilation and Heat Management
Ensure the ventilation slots on the adapter's casing are never blocked. These are essential for the cooling fan (if present) and passive heat sinks to dissipate internal heat generated by the regulator circuits. Operate the unit with ample space around it. Periodically inspect and clean the vents with compressed air to prevent dust buildup, which acts as a thermal insulator.
Connection and Usage Best Practices
Always double-check polarity and voltage settings before connecting a device. Connecting a device with reverse polarity or excessive voltage is a leading cause of damage. Use the following procedure:
Set the voltage control knob to zero or its minimum setting.
Ensure the unit is off or the output is disabled.
Connect your device to the output terminals, confirming the positive and negative connections.
Set the desired current limit if the adapter has a separate current control.
Turn on the output and slowly adjust the voltage to the required level.
Handling and Storage
Avoid dropping the unit or subjecting it to strong physical shocks, as this can damage internal components, particularly the precision potentiometers and display elements. When not in use for extended periods, store the adapter in its original packaging or a protective case. Coil the output cables loosely to prevent strain on the connectors and internal solder joints.
5. Periodic Calibration and Inspection
Over time, the accuracy of the voltage and current readings can drift. For critical applications, it is advisable to periodically calibrate the adapter against a trusted, more accurate multimeter or a calibration standard. Inspect the output cables and connectors regularly for signs of wear, fraying, or damage. Replace damaged cables immediately to prevent short circuits or electric shock hazards.
Safety Note: Always refer to the manufacturer's manual for specific maintenance guidelines and safety warnings. If the adapter exhibits abnormal behavior such as unusual noise, smoke, or erratic readings, discontinue use immediately and have it inspected by a qualified technician.
