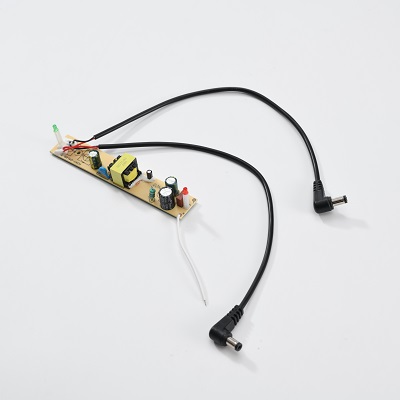

Introduction to Dual Output Power Supplies
Dual output power supplies represent a significant advancement in power management technology, offering two independent and often configurable power channels within a single unit. These sophisticated devices provide engineers and technicians with enhanced flexibility and efficiency compared to traditional single-output power supplies. The fundamental architecture typically includes two completely isolated output channels, each capable of delivering specified voltage and current levels independently or in coordinated operation.
Modern dual output power supplies incorporate advanced digital control systems, precision regulation circuitry, and comprehensive protection mechanisms. The isolation between channels, typically rated at ≥500V DC isolation voltage and isolation resistance of ≥1000 MΩ, ensures complete electrical separation between outputs. This isolation prevents ground loops, reduces noise coupling, and enables the creation of complex power configurations that would require multiple single-output units.
Technical Advantages and Performance Characteristics
Independent Channel Control and Flexibility
Dual output power supplies provide completely independent control over each output channel, allowing simultaneous operation at different voltage and current levels. Each channel typically features programming resolution of 1mV and 1mA with accuracy specifications of ±(0.05% + 2mV) for voltage and ±(0.1% + 3mA) for current. This precision enables sophisticated testing scenarios where different circuit sections require specific power conditions. The independent tracking capability allows channels to operate in series or parallel configurations, effectively doubling the available voltage or current output when needed. Advanced models offer digital interfaces including USB, LAN, and GPIB with communication speeds up to 115,200 baud rate for remote control and automation integration.
Space and Cost Efficiency
By integrating two power channels in a single enclosure, dual output power supplies reduce equipment footprint by approximately 40-50% compared to using two separate units. This consolidation also decreases total cost of ownership by 25-35% through reduced procurement expenses, simplified cabling, and decreased maintenance requirements. The power density achieved in modern dual output supplies reaches ≥0.75 W/cm³, with typical efficiency ratings of 85-92% across the operating range. This high efficiency translates to reduced heat generation, with thermal dissipation typically below 65°C at full load, contributing to improved reliability and longer service life.
Enhanced Measurement and Monitoring Capabilities
Advanced dual output power supplies incorporate sophisticated measurement systems capable of simultaneous monitoring of both output channels. Typical specifications include 16-bit analog-to-digital converters (ADC) for voltage and current measurement with update rates up to 50,000 readings per second. The built-in measurement accuracy typically reaches ±(0.05% + 2mV) for voltage and ±(0.1% + 3mA) for current, eliminating the need for external multimeters in many applications. Real-time monitoring capabilities include power consumption tracking, efficiency calculations, and data logging with memory capacity for ≥10,000 measurement points per channel.
Comprehensive Protection Features
Dual output power supplies implement multiple protection mechanisms on each independent channel, including over-voltage protection (OVP) with response times of ≤100μs, over-current protection (OCP) with accuracy of ±2% of set value, over-temperature protection with thermal sensors accurate to ±3°C, and short-circuit protection with current limiting response within 50μs. The OVP systems typically offer setting ranges from 0.5V to 130% of maximum rated voltage, while OCP can be set from 10% to 110% of maximum current rating. These protection features ensure device safety and prevent damage to connected equipment, with automatic shutdown and audible/visual alarms.
Application Scenarios and Implementation
Research and Development Laboratories
In R&D environments, dual output power supplies are indispensable for prototyping and testing complex electronic systems. They enable simultaneous powering of analog and digital circuit sections, with typical applications requiring ±15V for operational amplifiers and +3.3V/5V for digital logic. The independent channels allow engineers to simulate real-world power scenarios, including power sequencing tests with timing accuracy of ≤1ms between channel turn-on/turn-off events. The low noise characteristics, typically ≤1mVrms ripple and noise, make these supplies ideal for sensitive analog circuitry and precision measurement applications.
Educational Institutions and Training Facilities
Dual output power supplies serve as fundamental teaching tools in electronics education, providing students with hands-on experience in circuit design and power management. The typical configuration includes 0-30V, 0-3A per channel with constant voltage/constant current operation. The built-in safety features, including current limiting with adjustable limits from 10mA to maximum rating, protect both the equipment and students during learning exercises. The simultaneous display of voltage and current for both channels on high-visibility LCD displays enhances the educational experience and reinforces fundamental electrical principles.
Industrial Automation and Control Systems
In industrial settings, dual output power supplies provide reliable power for control systems, sensors, and actuators. The robust construction typically includes operating temperature ranges from 0°C to 50°C with derating above 40°C, and storage temperature capability from -20°C to 70°C. The mean time between failures (MTBF) for industrial-grade dual output supplies typically exceeds 100,000 hours at full load, 25°C ambient temperature. Applications include powering PLC systems with 24V DC for digital I/O and ±12V for analog modules, with line regulation better than 0.01% for input variations of 85-265V AC and load regulation of 0.01% + 2mV from no-load to full-load.
Telecommunications and Network Equipment Testing
Dual output power supplies are essential for testing telecommunications equipment that requires multiple voltage rails, such as +12V for interface circuits and -48V for traditional telecom systems. The fast transient response, typically ≤50μs recovery time for 50% load changes, ensures stable operation during dynamic load conditions. The remote sensing capability compensates for voltage drops in cabling, maintaining regulation accuracy of ±0.05% at the load point even with cable resistance up to 500mΩ per wire. This precision is critical for compliance testing to telecommunications standards including ITU-T, ETSI, and ANSI specifications.
Comprehensive Maintenance Procedures
Regular Performance Verification
Establish a scheduled calibration and verification program with intervals not exceeding 12 months or 2000 operating hours, whichever comes first. Performance verification should include accuracy checks of both voltage and current outputs using certified reference instruments with accuracy at least 4 times better than the power supply specifications. Measure output voltage accuracy at multiple setpoints including 10%, 50%, and 100% of rated voltage, and current accuracy at 25%, 75%, and 100% of rated current. Verify ripple and noise performance using true RMS measuring instruments with bandwidth up to 20MHz, ensuring values remain within specified limits, typically ≤1mVrms or 5mVpp for most applications.
Thermal Management and Cooling System Maintenance
Maintain adequate clearance around the power supply, with minimum 10cm spacing on all sides to ensure proper airflow. For forced-air cooled units, inspect and clean air filters every 3 months in normal environments or monthly in dusty conditions. Check fan operation and bearing wear by listening for unusual noises and measuring airflow velocity, which should typically be ≥1.5 m/s at the exhaust vent. Monitor internal temperatures using built-in sensors, ensuring they remain below 65°C for most components and 85°C for power semiconductors during continuous operation at maximum rated load.
Electrical Connection and Component Inspection
Quarterly inspections should include verification of all input and output connections for proper torque, typically 0.5-0.6 N·m for binding posts and 1.2-1.5 N·m for terminal blocks. Examine output capacitors for signs of bulging or leakage, measuring equivalent series resistance (ESR) which should not increase by more than 50% from initial value. Check power MOSFETs and rectifiers for thermal stress using infrared thermography, with temperature differentials between similar components not exceeding 15°C. Verify operation of all protection circuits by simulating fault conditions and measuring response times, which should be within ±20% of specified values.
