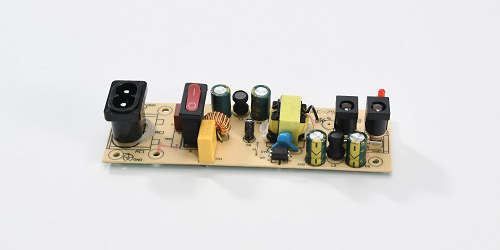

An ac to dc converter board, commonly referred to as an AC/DC power supply or rectifier board, is an essential electronic circuit that converts alternating current (AC) from mains power sources into stable direct current (DC) required by electronic devices. These sophisticated power conversion systems employ multiple stages of electronic processing to transform high-voltage AC input (typically 100-240V AC) into precisely regulated low-voltage DC output (commonly 3.3V, 5V, 12V, 24V, or 48V DC). The conversion process involves several critical stages including electromagnetic interference (EMI) filtering, rectification, power factor correction (PFC), and voltage regulation, all meticulously engineered to deliver clean, stable DC power while maintaining high efficiency and reliability.
Technical Characteristics and Performance Specifications
| Parameter | Specification Range | Technical Details |
|---|---|---|
| Input Voltage Range | 85-305V AC | Universal input capability supporting worldwide mains voltages with automatic detection and adjustment |
| Efficiency Rating | 85-96% | High-efficiency designs meeting 80 PLUS certification standards (Bronze to Titanium levels) |
| Power Factor | 0.95-0.99 | Active Power Factor Correction (PFC) circuits minimizing reactive power and harmonic distortion |
| Output Ripple & Noise | 10-50mV p-p | Low output noise characteristics achieved through multi-stage filtering and proper grounding |
| Load Regulation | ±1-3% | Precise voltage maintenance under varying load conditions from 10% to 100% of rated capacity |
| Line Regulation | ±0.5-2% | Stable output despite input voltage fluctuations within specified operating range |
| Operating Temperature | -40°C to +85°C | Industrial-grade components ensuring reliable operation across extreme environmental conditions |
| Thermal Management | Convection/Forced Air | Advanced heat sinking designs with optional fan cooling for high-power applications |
| Protection Features | Multiple Safeguards | Comprehensive protection including OVP, OCP, SCP, OTP, and surge protection per IEC standards |
| Isolation Voltage | 3000-6000V AC | Reinforced insulation meeting safety standards (UL/CE/TUV certifications) |
Advanced Technical Features
High-Frequency Switching Technology
Modern AC/DC converter boards employ high-frequency switching topologies operating at frequencies between 50kHz to 1MHz, enabling significant reductions in transformer size and weight while improving transient response characteristics. Advanced resonant and quasi-resonant switching techniques reduce switching losses and electromagnetic interference, achieving efficiency levels up to 96% in premium designs.
Digital Control and Monitoring
Contemporary designs incorporate digital signal processors (DSPs) and microcontroller units (MCUs) implementing sophisticated control algorithms for voltage regulation, current limiting, and thermal management. These intelligent systems provide real-time monitoring of operating parameters, fault diagnostics, and communication capabilities through interfaces such as I²C, PMBus, or CAN bus.
Modular and Scalable Architectures
Advanced converter boards feature modular construction with hot-swappable capabilities for critical applications requiring redundancy. Parallel operation capabilities with current sharing enable power scaling from hundreds of watts to multiple kilowatts, while maintaining voltage regulation within ±1% across all operating conditions.
Application Scenarios
Industrial Automation Systems: Powering PLCs, motor drives, sensors, and control systems in manufacturing environments with 24V DC industrial standard voltages, providing immunity to power line disturbances and voltage fluctuations.
Telecommunications Infrastructure: Delivering -48V DC power to base stations, network switches, routers, and transmission equipment with battery backup compatibility and remote monitoring capabilities.
Consumer Electronics: Integrated into Power Adapters for laptops, gaming consoles, and home entertainment systems, converting 100-240V AC mains to low-voltage DC (typically 5-20V) with compact form factors and high efficiency.
Medical Equipment: Providing isolated power to patient-connected devices including patient monitors, infusion pumps, and diagnostic equipment, meeting stringent medical safety standards (IEC 60601-1) with low leakage current specifications (<100μa).<>
Renewable Energy Systems: Converting AC power from wind turbines or grid-tie inverters to regulated DC for battery charging and energy storage systems, featuring maximum power point tracking (MPPT) algorithms.
LED Lighting Systems: Driving high-power LED arrays in commercial and industrial lighting applications with constant current outputs (350mA to 2A) and dimming capabilities through 0-10V or PWM control signals.
Test and Measurement Equipment: Providing clean, stable DC power to precision instruments, data acquisition systems, and laboratory equipment with low output noise (<10mv) and="" excellent="" line="">
Electric Vehicle Charging Stations: Converting grid AC to high-current DC for battery electric vehicles, featuring power levels from 3.6kW to 350kW with advanced thermal management and safety interlocks.
Maintenance and Operational Best Practices
Preventive Maintenance Procedures
Regular maintenance is crucial for ensuring long-term reliability and performance of AC/DC converter boards. Implement a comprehensive maintenance schedule including visual inspections for capacitor bulging or leakage, verification of cooling system operation, and thermal imaging to identify hot spots. Perform electrical testing every 6-12 months to verify output voltage accuracy, ripple specifications, and efficiency metrics. Document all maintenance activities and performance measurements to establish operational baselines and identify degradation trends.
Cleaning and Environmental Considerations
Maintain optimal operating conditions by ensuring adequate ventilation and preventing dust accumulation on heat sinks and components. Use compressed air or anti-static brushes for cleaning, avoiding conductive or corrosive cleaning agents. For industrial environments, consider conformal coating applications to protect against moisture, dust, and chemical contaminants. Monitor ambient temperature and humidity levels to ensure they remain within specified operating ranges.
Component Replacement Guidelines
Electrolytic capacitors typically represent the primary failure point in AC/DC converters due to electrolyte evaporation over time. Proactively replace bulk input capacitors and output filtering capacitors every 5-7 years in continuous operation applications. When replacing components, ensure identical specifications or approved equivalents, paying particular attention to voltage ratings, temperature coefficients, and ESR values. For surface-mount components, use appropriate soldering techniques and thermal management during replacement.
Storage and Handling Procedures
When not in operation, store converter boards in controlled environments with temperature maintained between 15-25°C and relative humidity below 60%. Use anti-static packaging and handling procedures to prevent ESD damage. For extended storage periods (>6 months), apply forming voltages to electrolytic capacitors periodically to maintain dielectric integrity.
Firmware and Software Maintenance
For digitally controlled converter boards, maintain current firmware versions and backup configuration parameters. Monitor manufacturer updates for performance enhancements, bug fixes, or additional features. Document all software modifications and maintain version control for critical applications.
Safety Considerations and Compliance
AC/DC converter boards operate with potentially lethal voltages and must be handled by qualified personnel following appropriate safety protocols. Always disconnect input power and verify discharge of high-voltage capacitors before performing maintenance. Ensure proper grounding and use insulated tools when working on live circuits. Maintain compliance with relevant safety standards including UL 60950-1, IEC 62368-1, and regional electrical codes. Implement lockout-tagout procedures for industrial installations and maintain clear safety documentation for all maintenance activities.
