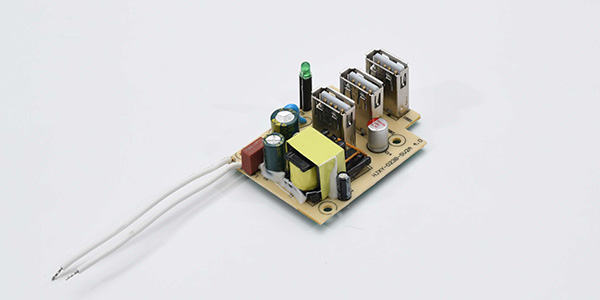

AC to DC 3 USB charging boards represent a significant advancement in power conversion technology, serving as crucial components in modern electronic ecosystems. These sophisticated circuit boards convert alternating current (AC) from wall outlets (typically 100-240V AC) into stable direct current (DC) output through multiple USB ports, enabling simultaneous charging of multiple devices. The evolution of these boards has revolutionized how we power our digital lives, offering unprecedented convenience and efficiency in energy conversion.
Technical Advantages with Professional Data
High-Efficiency Power Conversion
Modern AC to DC 3 USB Charging Boards employ advanced switching mode power supply (SMPS) technology that achieves remarkable conversion efficiencies of 85-92%, significantly reducing energy waste compared to traditional linear transformers that typically operate at 60-70% efficiency. High-quality boards incorporate synchronous rectification technology and premium MOSFET components that minimize switching losses, ensuring optimal performance even under full load conditions of 15-18W per port or total output capacities reaching 45-60W across all three ports.
Intelligent Charging Protocol Support
Contemporary charging boards integrate sophisticated protocol recognition chips that automatically detect connected devices and deliver optimal charging parameters. These systems support multiple fast-charging standards including Qualcomm Quick Charge 3.0/4.0 (delivering up to 18W), USB Power Delivery 3.0 (supporting 5V/3A, 9V/2A, 12V/1.5A profiles), and Huawei SuperCharge protocols. The intelligent IC controllers continuously monitor and adjust voltage and current with precision of ±0.5% regulation, ensuring compatible devices receive their maximum supported charging rate while maintaining safety margins.
Comprehensive Protection Circuitry
Premium charging boards incorporate multi-layered protection systems that operate with precise thresholds: Over-Current Protection (OCP) triggers at 110-150% of rated current with response times under 100 microseconds; Over-Voltage Protection (OVP) activates when output exceeds 5.5V-6.5V DC; Short-Circuit Protection (SCP) provides instantaneous shutdown with auto-recovery features; and Over-Temperature Protection (OTP) engages when internal components reach 85-105°C. These safety mechanisms ensure reliable operation while protecting both the charging board and connected devices from electrical anomalies.
Compact Design with Thermal Management
Advanced ac to dc boards feature high-density component layouts on FR-4 fiberglass substrates with 2-ounce copper layers for superior current handling. Despite powering three devices simultaneously, premium models maintain compact form factors of approximately 80mm × 50mm × 25mm. Thermal management is achieved through aluminum heat sinks with surface areas of 15-20cm² and thermal interface materials boasting thermal conductivity of 3-5 W/m·K, maintaining component temperatures 20-30°C below maximum rated limits even during continuous operation at maximum load.
Universal Compatibility and Stable Output
These charging boards maintain exceptional voltage stability with ripple and noise levels below 150mV peak-to-peak and load regulation within ±1% across the entire operating range. The wide input voltage range of 100-240V AC (50-60Hz) ensures global compatibility, while the output maintains 5V DC baseline with intelligent adjustment up to 20V for Power Delivery compatible devices. Each USB port typically provides 2.4A maximum current with dedicated charging port (DCP) recognition, supporting Apple, Samsung, and other major device manufacturers' charging requirements.
Application Scenarios
Commercial and Public Spaces
AC to DC 3 USB charging boards are extensively deployed in airports, hotels, cafes, and conference centers as integrated charging stations. Their ability to simultaneously charge multiple devices from different manufacturers makes them ideal for public installations. The robust protection circuitry ensures safe operation in high-usage environments, while the compact design facilitates integration into furniture, wall mounts, and kiosk systems.
Home and Office Integration
In residential and office settings, these boards are commonly embedded in power strips, bedside tables, and workstation furniture. The simultaneous charging capability for smartphones, tablets, and wearable devices eliminates the need for multiple Chargers. High-efficiency models contribute to reduced energy consumption, while intelligent power distribution automatically allocates available current based on connected devices' requirements.
IoT and Embedded Systems
For Internet of Things applications, these charging boards provide reliable power for multiple sensor hubs, controllers, and display units. The stable DC output ensures consistent operation of sensitive electronic components, while the compact form factor enables integration into space-constrained embedded systems. Industrial versions with enhanced EMI/RFI filtering are employed in manufacturing environments and automation systems.
Portable and Emergency Solutions
When combined with battery packs or generator systems, these boards serve as crucial components in emergency power supplies and portable charging solutions. Their wide input voltage tolerance makes them suitable for use with unstable power sources, while multiple USB outputs enable charging of communication devices, medical equipment, and lighting systems during power outages or in remote locations.
Retail and Display Applications
Electronics retailers utilize these charging boards for product demonstration stations, allowing multiple devices to remain powered for customer interaction. The universal compatibility ensures various demonstration units receive appropriate power regardless of manufacturer, while the protection circuitry prevents damage from frequent connection and disconnection.
Comprehensive Maintenance Guidelines
Regular Inspection and Cleaning
Perform visual inspections monthly for signs of component degradation, including bulging capacitors (particularly electrolytic types with ratings above 200μF), discolored PCB areas indicating overheating, or damaged USB ports. Use compressed air with pressure not exceeding 30 PSI to remove dust accumulation from component surfaces and connectors. For thorough cleaning, employ isopropyl alcohol (70-99% concentration) with anti-static brushes to clean PCB surfaces, paying special attention to USB port contacts and input terminal areas.
Thermal Management Maintenance
Monitor operating temperatures during use with infrared thermometers, ensuring heat sinks and power components remain below 70°C during continuous operation. For boards experiencing elevated temperatures, verify heat sink attachment integrity and consider applying fresh thermal interface material with thermal conductivity rating of at least 3 W/m·K. Ensure adequate ventilation around the charging board, maintaining minimum clearance of 50mm from surrounding surfaces for proper air circulation.
Electrical Performance Verification
Quarterly testing with calibrated multimeters is recommended to verify output voltage stability under various load conditions. Measure USB port outputs with loads of 0.5A, 1A, and 2A, confirming voltage remains within 4.75V-5.25V range. Use oscilloscopes to check for excessive ripple voltage (should not exceed 200mV peak-to-peak) which may indicate capacitor degradation. Document performance metrics to identify gradual deterioration over time.
Connection and Port Maintenance
Regularly inspect AC input wiring for secure connections and absence of corrosion. For screw terminal inputs, verify tightness with appropriate torque (typically 0.5-0.6 N·m) every six months. Clean USB ports using plastic-safe contact cleaners and non-metallic tools to remove debris and oxidation. Avoid excessive force during device insertion and ensure connectors align properly before applying pressure to prevent port damage.
Environmental Protection and Storage
When deployed in humid environments (above 60% RH), consider applying conformal coating rated for electrical applications to protect against moisture and corrosion. For extended storage, maintain boards in anti-static packaging with desiccant packs in controlled environments (15-25°C, 30-50% RH). Avoid exposure to direct sunlight, extreme temperatures (-20°C to +60°C operating range typically), and conductive contaminants that could cause short circuits.
Component Replacement and Repair
When replacing components, use parts with identical or superior specifications, paying particular attention to voltage and current ratings of MOSFETs, diodes, and capacitors. For surface-mount devices, employ appropriate soldering equipment with temperature control not exceeding 350°C to prevent PCB delamination. After component replacement, verify proper operation with gradual load testing before returning to full service.
